Round Pressure Cover up to 8/-1 bar

Runder Druckverschluss bis 8/-1 bar

Product description

The round pressure cover can be used universally. With the versatile options, it can be optimally adapted to your respective process.

Versatile customizable options

Diameter, materials, neck lengths, wall thicknesses, surfaces, etc. can be individual adapted to your vessel.

Standard design

  • Wetted material: 1.4571
  • Attachment parts: 1.4301
  • Plastic handles with stainless steel insert
  • Silicone-gasket
  • Hinge and handle
  • Neck length 150 mm
  • Surface unpolished, glass-bead blasted; from NW600 unpolished, pickled
  • With EU-approval (Modul G) acc. PED 2014/68/EC
  • Design Code: AD 2000-Merkblatt

Options

  • Wetted materials: 1.4404, 1.4435, 1.4539, 1.4529, 1.4462, 1.4429, HC-22, HC-276, HC-2000, etc.
  • lntermediate sizes
  • Various gasket qualities
  • Various surface qualities (glass-bead blasted, pickled or polished up to Ra < 0,2 µm)
  • Neck length up to 2000 mm, neck thickness up to 20 mm
  • Conical design of the neck (up to max. 8 mm neck thickness)
  • Neck shaped to match tank-diameter
  • Side swiveling
  • Various handles (stainless steel handles, toggles, nuts, etc.)
  • Wedge for side installation
  • Locking pin in open position
  • Springassists (torsion-, disc- or toolspring)
  • Installation of nozzles (sightglasses, TC-ferrules (DIN32676), HZ-Connect, etc.)
  • Various limit- / proximity-switches
  • Safety-grill / safety-cross
  • Attachment parts in other materials
  • Various Design Codes: ASME Vlll-1, EN13445, etc.
  • Optional with ASME-approval Sec. Vlll-1, latest Edition (additional surcharge, design-changes possible)

Data sheet

Round Pressure Cover up to 8/-1 bar

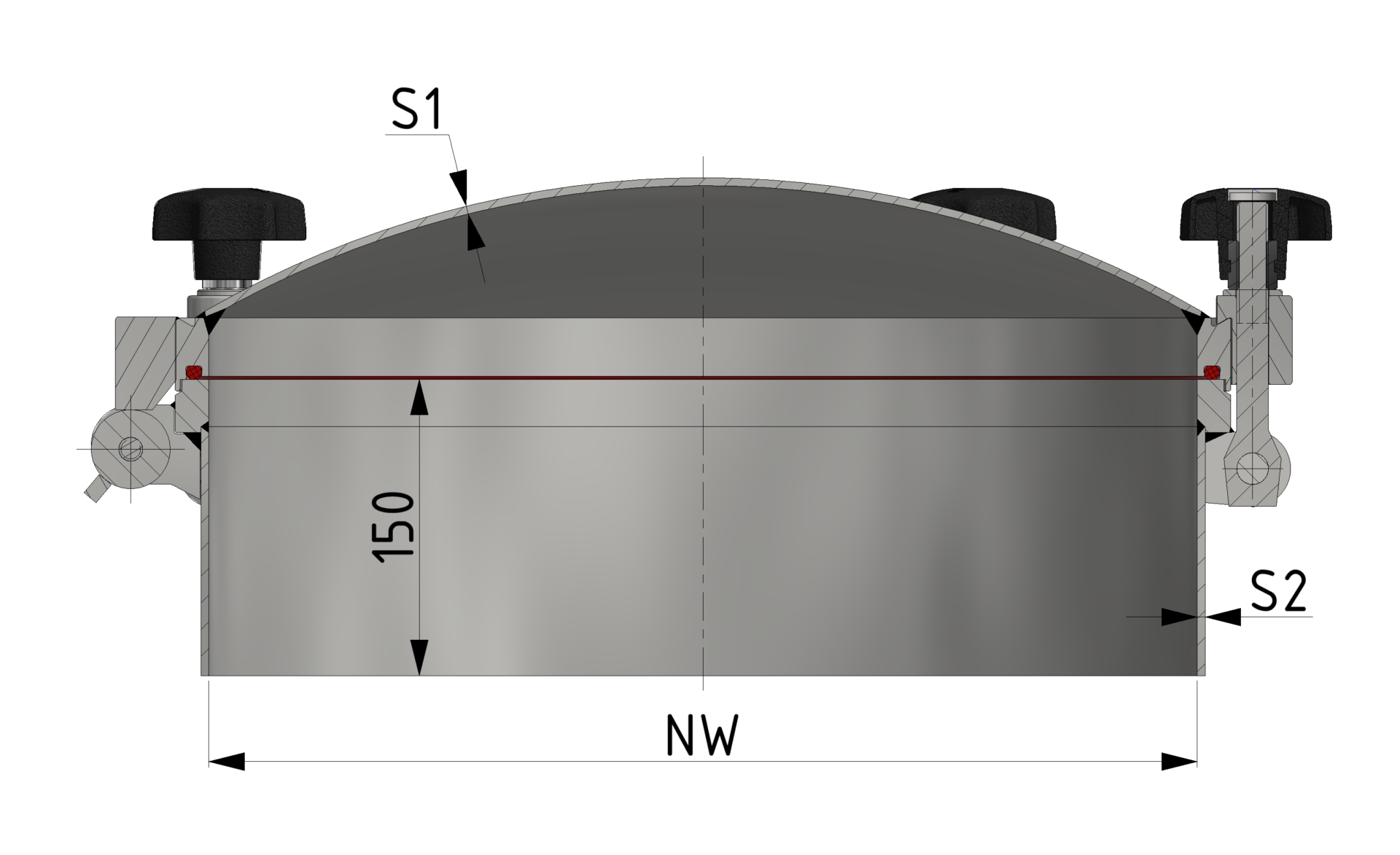

Schnittzeichnung Runder Druckverschluss bis 8/-1 bar
Data sheet - Round Pressure Cover up to 8/-1 bar
Article No. NW MAWP
[bar]
max. temperature
[°C]
Number of
screws [M16]
Lid thickness
(S1) [mm]
Neck thickness
(S2) [mm]
Total height
[mm]
Weight
[kg]
20162004 100 6 200 4 6 4 180 9
21562004 150 6 200 4 5 4 185 11
22062004 200 6 200 4 5 4 190 14
22542804 250 4 280 4 4 4 195 16
22582504 250 8 250 4 6 4 195 17
23042504 300 4 250 4 4 4 200 18
23062506 300 6 250 6 5 4 200 21
23082506 300 8 250 6 6 4 200 22
23542004 350 4 200 4 3 4 215 21
23562006 350 6 200 6 4 4 215 24
24042804 400 4 280 4 4 4 230 24
24060506 400 6 50 6 4 4 230 27
24062808 400 6 280 8 5 4 230 28
24082810 400 8 280 10 6 4 230 31
24542806 450 4 280 6 4 4 240 28
24562508 450 6 250 8 4 4 240 31
24582010 450 8 200 10 5 4 240 34
25032806 500 3 280 6 3 4 255 31
25042808 500 4 280 8 4 4 255 33
25062510 500 6 250 10 4 4 255 38
25081512 500 8 150 12 5 4 255 40
26022806 600 2 280 6 3 4 285 42
26040508 600 4 50 8 3 4 285 44
26042810 600 4 280 10 4 4 285 46
26061512 600 6 150 12 4 4 285 49
26080512 600 8 50 12 5 4 285 53
27022808 700 2 280 8 4 4 295 56
27042812 700 4 280 12 5 4 295 64
27061516 700 6 150 16 5 4 295 70
27080518 700 8 50 18 6 4 295 78
28020508 800 2 50 8 4 4 300 76
28022810 800 2 280 10 4 4 300 78
28041514 800 4 150 14 4 4 300 82
28060518 800 6 50 18 5 4 300 90
28080520 800 8 50 20 6 4 300 97
29022812 900 2 280 12 5 4 320 87
29042018 900 4 200 18 5 4 320 103
29061022 900 6 100 22 6 4 320 115
29080524 900 8 50 24 6 4 320 128
21022812 1000 2 280 12 5 4 340 110
21042022 1000 4 200 22 5 4 340 118
21060524 1000 6 50 24 6 4 340 125
