Glass-Cover up to 12/-1 bar

Glas-Deckel bis 12/-1 bar

Product description

Do you need a filling opening or observation glass (if necessary with light and wiper) all hinge-mounted?
Our glass pressure cover was developed especially for this purpose. This cover consists of a flange ring as well as a borosilicate glass-pane conforming to DIN7080. The glass seals directly on the O-ring incorporated into the neck-flange. The viewing aperture is the same as the inner diameter. It is also possible to fasten a light (with folding hinge) to the cover hinge. Moreover it is possible to install a wiper (centered).

Standard design

  • Wetted material: 1.4571
  • Attachment parts: 1.4301
  • Borosilicate glass-pane DIN7080
  • Plastic handles with stainless steel insert
  • Silicone-gasket
  • Hinge and plastic knob
  • Neck length 150 mm (*up to NW150 – 100 mm)
  • Surface unpolished, glass-bead blasted; from NW600 unpolished, pickled
  • With EU-approval (Modul G) acc. PED 2014/68/EU
  • Design Code: AD 2000-Merkblatt

Options

  • Wetted materials: 1.4404, 1.4435, 1.4539, 1.4529, 1.4462, 1.4429, HC-22, HC-276, HC-2000, etc.
  • Intermediate sizes
  • Various gasket qualities
  • Various surface qualities (glass-bead blasted, pickled or polished up to Ra < 0,2 µm)
  • Neck length up to 2000 mm, neck thickness up to 20 mm
  • Conical design of the neck (up to max. 8 mm neck thickness)
  • Neck shaped to match tank-diameter
  • Side swiveling
  • Various handles (stainless steel handles, toggles, nuts, etc.)
  • Wedge for side installation
  • Locking pin in open position
  • Springassists (torsion-, disc- or toolspring)
  • Installation of nozzles (TC-ferrules (DIN32676), HZ-Connect, etc.) in the shell section
  • Various limit- / proximity-switches
  • Safety-grill / safety-cross
  • Attachment parts in other materials
  • Wiper and / or luminaires
  • Logo (glass bead blasted on the glass-pane) according to customer template (glass-pane thickness and operating pressure need to be adjusted, need to be checked for specific application)
  • Various Design Codes: ASME Vlll-1, EN13445, etc.
  • Optional (partial) with ASME-approval Sec. Vlll-1, latest Edition (additional surcharge, design-changes possible)

Data sheet

Glass-Cover up to 12/-1 bar

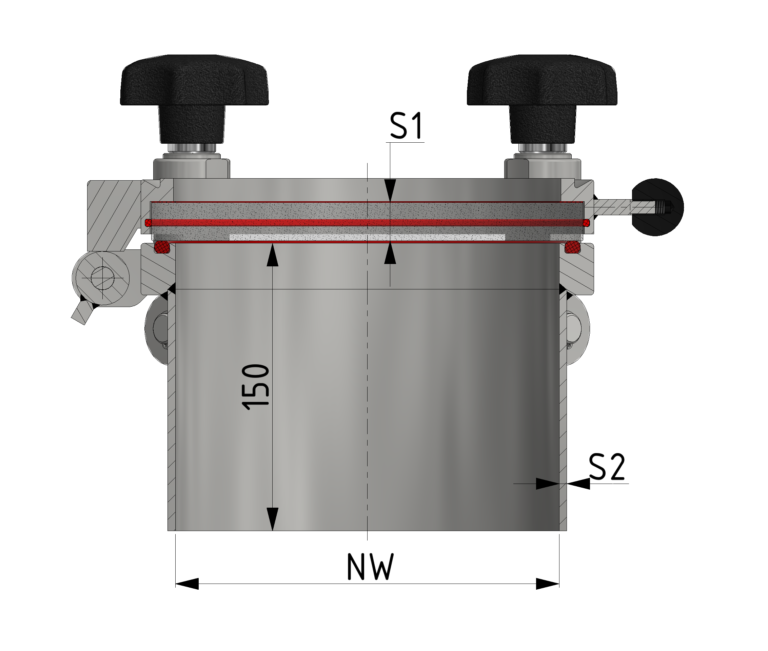

Schnittzeichnung Glas-Deckel bis 12/-1 bar
Data sheet - Glass-Cover up to 12/-1 bar
Article No. NW MAWP
[bar]
max. temperature
[°C]
Number of
screws [M16]
Size of glass-pane
(S1) [mm]
Neck thickness
(S2) [mm]
Weight
[kg]
221 012 100 12 280 4 Ø125 x 20 4 14
221 500 150 4 280 4 Ø175 x 20 4 15
221 510 150 10 280 4 Ø175 x 25 4 17
222 000 200 4 280 4 Ø225 x 20 4 18
222 010 200 8 280 4 Ø225 x 25 4 19
222 500 250 4 280 4 Ø275 x 25 4 25
222 508 250 8 280 4 Ø275 x 30 4 26
223 000 300 4 280 4 Ø325 x 25 4 29
223 006 300 6 280 6 Ø325 x 30 4 30
223 500 350 4 280 4 Ø375 x 30 4 34
224 000 400 3 280 4 Ø425 x 30 4 39
224 500 450 2,5 280 6 Ø475 x 30 4 43
225 000 500 2 280 6 Ø525 x 30 4 48
226 000 600 1 280 6 Ø625 x 30 4 61
